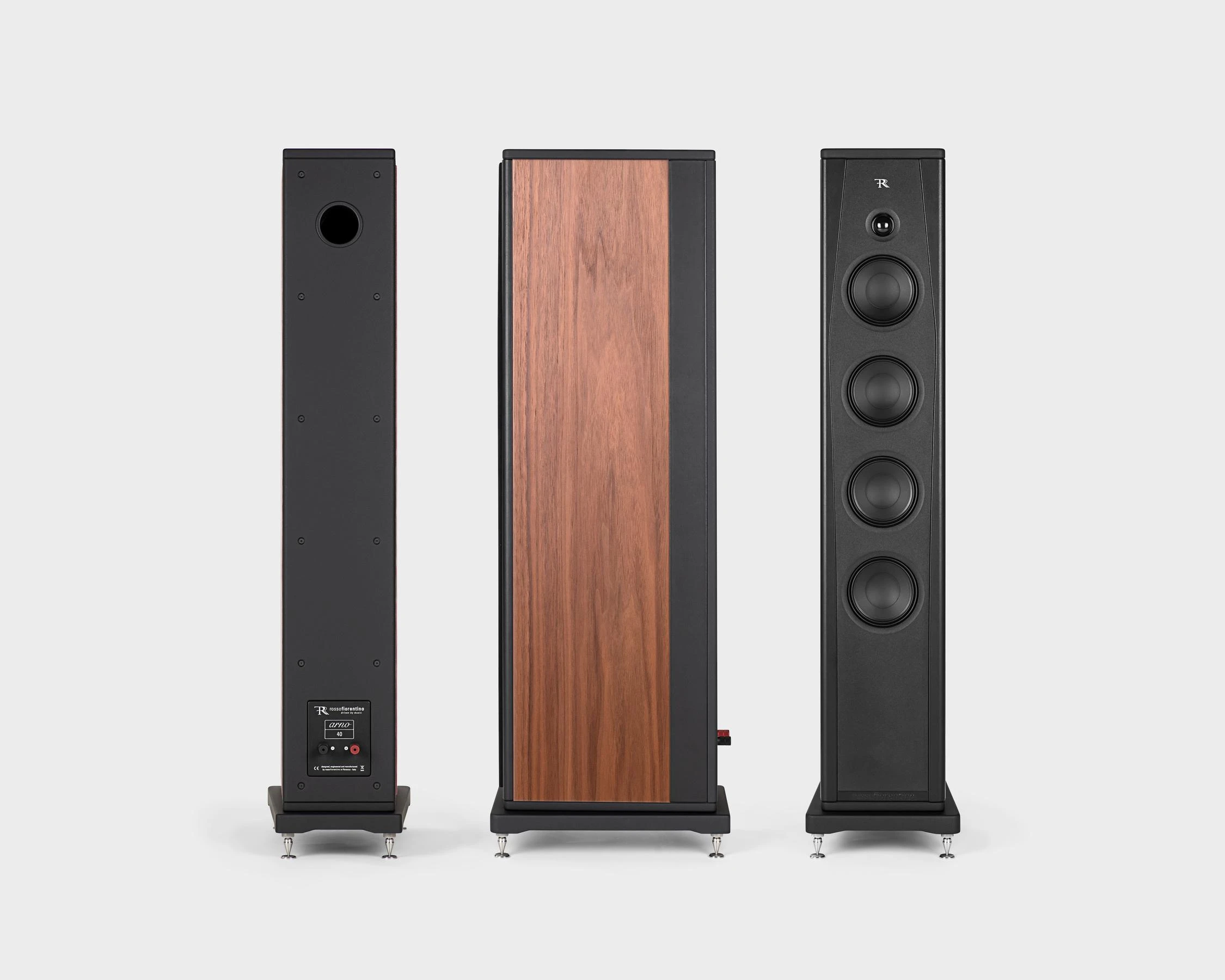

Arno 40
Immersive Sound, Italian Craftsmanship
A sleek design profile featuring a set of 5 1/2” high-performance drivers, engineered to handle demanding power levels with precision.
An unconventional acoustic load is paired with an extremely refined crossover circuit, both in terms of components used and in the seamless blending of sounds with great musicality, all while attentively catering to the amplifier’s needs. The sophisticated cabinet is constructed using various materials through the layer constraint technique, resulting in an almost resonance-free structure, with all hardware designed in-house and manufactured here in Italy.
To ensure an authentic listening experience, sound should come only from the drivers, not the cabinet. Vibrations in cabinet panels cause distortion, so they must be as inert as possible. Rosso’s constrained layer damping, used throughout the ARNO series, minimizes internal resonances by combining materials with complementary acoustic properties. This approach enhances rigidity, damping, and overall clarity. Listeners enjoy a purer sound, a more defined soundstage, and better bass response. Additionally, fibrous damping materials and air “cushions” help absorb cabinet resonances, improving energy distribution inside the speaker.
In our design philosophy, we don’t follow a single electroacoustic approach but select the best technique for each product. Rather than rigidly favoring first-order crossovers, we use the most effective method to achieve our goals. The outcome is key, always guided by our expertise in electroacoustics and hands-on experience. For the ARNO40, the crossover was engineered from scratch with top-quality components and exclusive in-house elements like custom coils. The circuit design focuses on making the impedance more resistive and stable, allowing the amplifier to operate more efficiently and ensuring superior sound quality.
Technical Specifications
Type
2.5 -way rear/down firing ported floorstanding system
Sensitivity
90 dBspl (2.83V, 1 m)
Nominal impedance
8Ω (minimum 4,8Ω)
Drive units
- 1 x ø 28 mm (1.1 in) silk dome neodymium tweeter
- 1 x ø 150 mm (5.5 in) paper treated cone mid-range
- 3 x ø 150 mm (5.5 in) paper treated cone mid-woofer
Frequency response (±3dB)
35 Hz – 25 kHz
Crossover frequencies
High extended energy filler – 2.0 kHz
Recommended amplifier power
25 W – 150 W into 8Ω with unclipped sound signal
Cabinet
Constructed with multiple solid layers of HDF, rubber, and aluminum using the Constrained-layer damping method for perfect vibration control.
Dimensions
- Height: 1130 mm (44,5 in) incl. plinth and spikes
- Width: 200 mm (7.9 in) | 248 mm (9.7 in) including plinth
- Depth: 342 mm (13,4 in) | 383,5 mm (15,1 in) including
plinth
Net weight
38 Kg (83,8 lb) each
Cabinet finish
- Exclusive RF soft touch black coating
- Black genuine leather (front panel and side stripes)
Side panels
- Standard: Available in Glossy Black or Natural Walnut finishes.
- Genuine Leather: A premium option featuring high-quality genuine leather for a luxurious look and feel.
- Custom Lacquer: A customizable finish available in various lacquer colors upon request, offering a unique and personalized appearance.
- Carbon Fiber: A sleek and modern finish made from glossy carbon fiber, known for its strength, lightweight, and stylish aesthetics.
Arno series
Introducing the ARNO series, a pivotal step in our tireless pursuit of excellence in sound reproduction. Named after the river that flows through the heart of Florence, this new line is a testament to our ongoing evolution as a loudspeaker manufacturer.
For the first time, we offer a comprehensive range that
seamlessly fuses the demanding standards of High-End audio with the adaptability required for multi-channel systems. The ARNO loudspeakers deliver an immersive listening experience, built upon a foundation of cutting-edge engineering and long fine-tuning of sound down to the smallest details.
